How SLS 3D Printing Works: A Complete Guide

Introduction

Selective Laser Sintering (SLS) is one of the most capable 3D printing technologies out there, but most people have never heard of it. FDM printers extrude plastic filament. SLA printers cure liquid resin with UV light. SLS does something different: it uses a laser to fuse powdered material together, one layer at a time, and the results are noticeably stronger and more detailed than what you'd get from a typical desktop printer.

For a long time the technology was locked away in industrial settings. Even today, SLS machines start around $20,000 and climb well past $100,000, which puts them out of reach for most makers and small businesses. Part of the reason for that price tag is thermal complexity: these systems need to heat huge volumes of powder and keep the whole chamber stable while they print. That's starting to change, with more affordable desktop machines beginning to enter the market.

This guide walks through how SLS actually works, from the powder to the finished part, and explains why desktop versions of the technology are finally becoming realistic.

What Is SLS 3D Printing?

SLS stands for Selective Laser Sintering. "Selective" because the laser only touches the areas that need to become part of the final object. "Sintering" because the powder particles are fused together with heat, not fully melted the way you'd melt plastic in an injection mold.

Here's how it stacks up against the other common printing methods.

FDM builds with filament, extruded through a nozzle, and needs support structures for any overhang. Material waste is low, around 10% from failed prints and purge, but part strength is layer-dependent and tends to be weaker along the vertical axis. Machines run cheap, typically $200 to $2,000, and print speed is fast.

SLA and DLP printers cure liquid resin with UV light, layer by layer. Like FDM, they need support structures, and waste tends to run around 20% once you factor in supports and failed prints. Part strength lands in the medium-to-high range. Machines cost anywhere from $1,000 to $15,000, and speed is moderate.

SLS is different on almost every count. It builds with powder (PA12, TPU, nylon, and others) rather than filament or resin, and the laser sinters the powder rather than extruding or curing it. It needs no support structures at all, since the surrounding powder does that job. The trade-off is higher material waste, typically around 50% unused powder per print, though most of that gets reused. Part strength is high and isotropic, meaning it holds up about equally well in every direction, not just along the layer lines. Machines have historically started around $20,000 and climbed past $300,000, though desktop options like Formfortis are aiming to bring that down to around $2,500. Print speed is moderate, similar to resin printing.

The biggest advantage is that you never need support structures. With FDM and SLA, you have to design breakaway supports for any overhang, then spend time removing them afterward. With SLS, the loose powder surrounding your part does that job for you. That opens up a lot of design freedom you just don't get with other processes.

The SLS Printing Process, Step by Step

1. Powder preparation

Before the laser ever fires, the powder has to be ready. That means a few things:

It needs to be dry. PA12 in particular absorbs moisture from the air, and if you print with wet powder, that trapped moisture turns into porosity and weak spots in the finished part.

It's usually pre-heated close to its melting point (around 150 to 170°C for PA12 in industrial machines), which cuts down on how much energy the laser has to add.

The particle size needs to be reasonably uniform, typically in the 50 to 100 micron range, so the results come out consistent.

One thing worth knowing: industrial SLS machines heat the entire powder bed to close to sintering temperature and hold the whole chamber there. Some newer desktop approaches, including the machine we're developing at Formfortis, take a different route: rather than tightly controlling chamber ambient temperature, only the powder surface temperature is actively controlled, typically kept in the 150 to 170°C range to prevent warping, while the chamber itself is left to settle wherever it naturally lands. That simplifies the thermal system considerably compared to a fully heated industrial chamber.

2. Layer deposition

Once the powder's ready, the printer starts building layers:

A feed cylinder full of powder rises slightly, pushing fresh material up and forward. A recoater blade, essentially a flat rigid scraper, sweeps that powder across the build platform in a thin, even layer, usually around 0.1 mm thick. Now there's a fresh layer ready to be sintered.

This repeats for every single layer of the print.

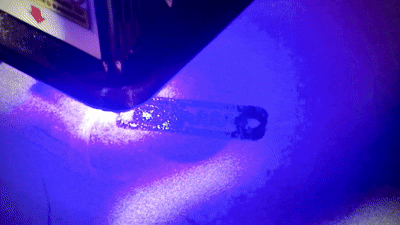

3. Selective laser sintering

This is the step the process is named after. The laser traces the shape of your part's current cross-section:

A laser beam, usually a CO₂ laser around 40 to 100W in industrial machines or a lower-power diode laser in desktop systems, scans across the powder bed. Wherever it touches, the powder heats past its glass transition temperature and the particles fuse together. Anywhere the laser doesn't go, the powder just sits there, loose and unsintered, ready to be brushed away later.

The pattern the laser follows matters too. Raster scanning (straight parallel lines) is fast. Contour passes, where the outline is traced first and the infill comes after, tend to give a cleaner surface finish.

Sintering itself is a bit different from melting. The particles bond at their surfaces without fully liquefying, which is part of why the resulting parts hold up so well structurally.

4. Layer completion and cooling

After a layer finishes sintering:

The build platform drops down by one layer height. The recoater blade sweeps across again to lay down the next layer. Repeat until the whole part is built.

Throughout the entire print, the unsintered powder around your part is quietly doing its job as a support structure, holding up overhangs and bridges and internal cavities without you ever having to design for it.

5. Post-processing: cool, extract, clean

Once the print's finished:

The powder bed cools down, either passively in open air or actively in industrial machines. The build platform comes out of the chamber. Loose powder gets brushed off (and can usually be reused). Parts get a final clean with compressed air or a tumbler. From there you can dye them, vapor-smooth them with acetone if it's nylon, or just leave them as-is.

Material Options

PA12 (Polyamide 12) is the workhorse of SLS printing. It's tough, a bit flexible, and holds up to continuous temperatures around 80°C. Good for hinges, brackets, gaskets, anything that needs to actually function under load. It does need drying before use, typically 4 to 8 hours at 80°C.

TPU gives you a flexible, rubber-like material. Good for dampers, seals, shoe soles, anything that needs to absorb impact. It's a bit trickier to sinter properly since over-sintering can ruin the flexibility.

Polypropylene is chemical-resistant and light, useful for containers or food-contact parts, though it's harder to sinter evenly than PA12.

There are also specialty blends: carbon-fiber-filled nylon for extra stiffness, glass-filled nylon for higher heat resistance, aluminum-filled nylon if you want a metallic look and some conductivity.

The point is, your part's mechanical properties come down to the powder you pick, not some workaround you have to engineer around a limited material set.

---

Desktop SLS vs Industrial SLS

If SLS is this good, why isn't it everywhere already?

Mostly it comes down to thermal infrastructure. Industrial machines keep the entire powder bed near sintering temperature, often 160 to 180°C, so the laser doesn't have to add much energy. But maintaining that kind of heat across a large chamber means heavy insulation, complex cooling systems, and a lot of energy draw. That's expensive to build and expensive to run.

Desktop machines take a different route. Formfortis, for example, only actively controls the powder's surface temperature, targeting the 150 to 170°C range needed to prevent warping, while letting the surrounding chamber settle at whatever temperature it naturally reaches rather than fighting to hold the whole volume at a fixed setpoint. That cuts out a huge amount of the thermal infrastructure an industrial machine needs, which is part of what makes a machine priced around $2,500 possible instead of $20,000 and up.

What's made this practical now is a combination of things: diode lasers have gotten more powerful and cheaper, powder formulations have improved, and slicer software has gotten smarter about compensating for the lower ambient heat.

Getting Good Results: Key Print Parameters

If you're actually running an SLS printer, these are the settings that matter most.

Laser power and speed. More power sinters faster, but push it too far and you risk weak, rough parts from over-sintering. Slower scan speeds give the powder more time to absorb heat evenly but obviously take longer. The right balance depends heavily on your material and chamber temperature.

Layer height. Most machines run 0.1 to 0.15 mm. Thinner layers give more detail but take longer. Thicker layers print faster at the cost of precision, and ±0.2 mm accuracy is a fairly typical target.

Scan pattern. Raster scanning is quick and gives uniform infill. Contour-first passes tend to look better on the surface. Rotating the hatch angle between layers helps parts come out equally strong in every direction instead of being weaker along one axis.

Drying and powder care. Dry PA12 at 80°C for 4 to 8 hours before use, store it somewhere dry (under 20% relative humidity if you can manage it), and expect to get 5 to 10 reuse cycles out of a batch before quality starts dropping off.

SLS vs Other Printing Methods: When to Use Which

SLS vs FDM. Go with SLS if you need structural parts without support cleanup, complex geometry, or a tougher material than standard filament. Go with FDM if speed and cost are the priority and the part doesn't need to be especially strong.

SLS vs resin (SLA/DLP). SLS wins for tough, functional parts where you don't want to deal with support removal. Resin wins if you need extremely fine detail and don't mind the extra cleanup and disposal that comes with liquid resin.

SLS vs injection molding. SLS makes sense for prototypes and low-volume runs, roughly 10 to 1,000 units. Once you're into the tens of thousands, injection molding's tooling cost starts to pay for itself.

Common Mistakes People Make With SLS

Printing with wet powder. This is probably the most common failure. It leads to porous, weak parts that fail under load. Dry your PA12 for 4 to 8 hours at 80°C before you print with it.

Making walls too thin. Thin features break during handling or post-processing. Keep walls at least 1.5 mm and fine details at least 2 mm, depending on the material.

Ignoring laser spot size. If you design details finer than your laser's spot size (around 0.3 mm on most desktop systems), they'll just merge together. Design with that limit in mind.

Packing parts too tightly. Nesting parts close together concentrates heat and can cause warping or failed prints. Leave 2 to 5 mm of clearance and try to spread larger parts out to distribute thermal load evenly.

Rushing the cooling. Pulling parts out while they're still hot leads to warping as they cool unevenly afterward. Let the bed cool down slowly and passively before extracting anything.

Frequently Asked Questions

How strong are SLS parts? Pretty close to injection-molded plastic. PA12 SLS parts typically come in around 50 to 60 MPa tensile strength, compared to 60 to 70 MPa for injection-molded nylon. Because there aren't distinct layer lines the way there are with FDM, SLS parts tend to be isotropic, meaning they're roughly equally strong no matter which direction the force comes from.

Can you reuse SLS powder? Yes, usually 5 to 10 times before quality drops off noticeably. Each cycle degrades it a little (smaller particles, some burning), but it stays printable well past the first use. Budget for roughly 10 to 20% powder waste per print.

How long does a print take? It depends on size and laser power, but a 10x10x10 cm part usually takes somewhere between 4 and 8 hours. Desktop machines run a bit slower than industrial ones since they're not pre-heating the powder as aggressively, but the times are still reasonable for most projects.

Do you need supports? No. This is one of the best things about SLS. The surrounding powder holds everything up during the print, so there's no support material to design, print, or remove afterward.

How fine of detail can you get? Desktop SLS machines typically hold around ±0.2 mm accuracy, with feature detail down to about 2 mm. Industrial machines can go finer, closer to ±0.1 mm, but desktop systems are more than capable for most functional parts.

How much space does a machine need? Desktop SLS printers are roughly the size of mini fridge. Industrial ones take up a lot more room depending on the machine. The Formfortis S1, for instance, is designed to fit on a normal workbench.

Can SLS print in color? Industrial machines can mix dyes into the powder or apply color after the fact. Desktop machines usually print in the powder's natural white/black and can be dyed afterward, but full-color printing the way you'd get with some resin or FDM setups isn't really there yet for SLS.

Is SLS safe to use? It's generally safer than resin printing since there's no toxic liquid chemistry involved. The main things to get right are laser safety (proper enclosures and interlocks are non-negotiable) and basic dust control. PA12 powder isn't hazardous the way metal powders can be, but you still don't want to be breathing it in regularly, so decent ventilation and PPE are worth having.

Where Desktop SLS Is Headed

For most of its history, SLS was something only well-funded companies could access, with entry-level machines still running $20,000 or more today. The barriers were thermal infrastructure, laser cost, and software complexity, and none of those were cheap to solve.

That's starting to shift. Better diode lasers, smarter thermal design, and open-source slicing tools (Klipper-based systems among them) are bringing the cost down to something an individual maker or small business can actually afford. Machines like the upcoming Formfortis S1, targeting a price point around $2,500, are part of that shift, aiming to put real SLS capability on a workbench instead of a factory floor.

SLS is starting to look less like a niche industrial process and more like a standard option alongside FDM and resin printing, just one more tool in the kit.
